Design
Approach to design and product design
-
Designing
Designing is a phase in which the product should be devised, its functionality ensured, the parts and assemblies , the materials to be used, the order of assembly, templates, economy in the utilization of the material, preparation of the necessary workshop documentation, test, number of zero series and so on.
-
Product design
The design should give a modern look that will be in tune with the spacious architecture and eye-catching. The attractiveness of a product on the market depends on its design.
Some phases in design
Defining positions and assemblies
Defining positions (elements from which the product consists ) is a very important strategy when devising a whole of a product. In essence, the fewer assemblies have one full product, and the fewer the positions they enter into, the smaller the number of operations and the less time it takes to make the product. This reduces the number of working hours , which means less production costs. In the end, it affects the ultimate price of the product and therefore the competitiveness on the market.
 Position (element) |
|---|
 Position (element) |
 Position (element) |
 Assembly |
(Click on the image for the pop-up display)
Templates
It is intended to be used in a series of positions, assemblies or products. Instead of being measured every time again, with the help of the boundaries, the places of the openings are defined, the mutual distances between positions and assemblies. This accelerates the assembly , or the formation of the position on a machine. The templates can be fixed to a machine, stand-alone or hand-held, and when they are positioned in one position, determines the position of another in relation to it.
 TemplateStand-alone |
|---|
 TemplateStand-alone |
 Templatefixed to a machine |
 Templatefixed to a machine |
 End result |
(Click on the image for the pop-up display)
Specific software
Creation of this kind of software should be applied when designing products that are identical but different types and performances. It eliminates the need of repetition on the same calculations for each type of product. My choice is the Delphi programming platform. The available mathematical tool can cover even the most complex design calculations. And because it is a base-oriented platform , information can be stored in the database and processed with each new calculation or type of calculation.
Creating an application is laborious work, but it is created once and is continuously used.
I have created such applications for constructions, that is, in the domain of metal constructions.
 Calculators |
|---|
 CalculatorsHeat exchanger area |
 CalculatorsFume duct |
 CalculatorsArea of heat radiation |
 CalculatorsSpiral heat exchanger |
 CalculatorsAir duct |
 CalculatorsBurning of natural gas |
 CalculatorsBurning of wood and pellets |
 Test software |
 Test softwareTest of the heat power output |
 Test softwareTest of the heat power output |
(Click on the image for the pop-up display)
Implemented and unimplemented projects
The gallery shows some implemented and unimplemented projects in order to demonstrate the approach to the design of a product from me.
Implemented projects
 Wood boiler |
|---|
 Reservoir for pelletssmall capacity |

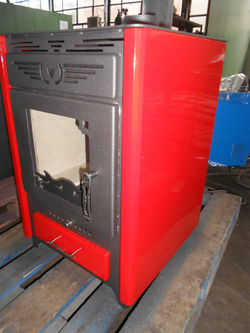

 "Dorina"wood stove |
 "Dorina"wood stove |
 "Dorina"wood stove |
 "Mystic"wood stove |
 "Mystic"wood stove |
 "Pearl"wood stove with oven |
 Stoves in production |
 "Viking"Pellet stove |
 "Viking"Pellet stove |
 "Viking"Ornaments |
 "Viking"ornaments |
 "Viking"ornaments |
 "Viking"ornaments |

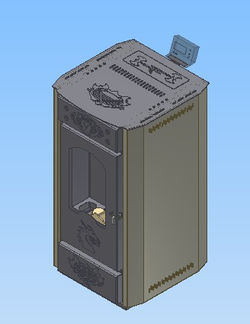

 "Viking"pellet stove - project |
 Forklift basket |
 "Mariner"Corner fireplace |
 "Mariner"Corner fireplace |
(Click on the image for the pop-up display)
Unimplemented projects
 SpartanPellet stove |
|---|
 Spartan-LVPellet stove |
 Pellet boiler |
 Pellet boiler |
 Cometpellet stove |
 Fireplace with boiler |
 Fireplace with boiler |
 Hot air generator |
 Wood stove |
 Containerfor different type of waste |
